Q?

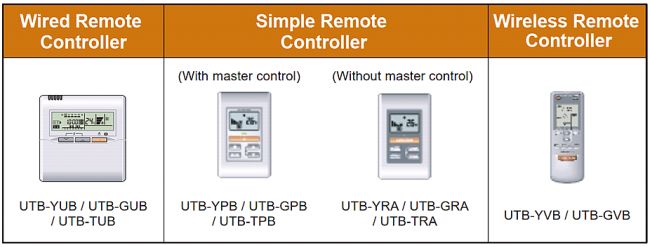

What remote controllers can be used for the Fujitsu VR-VI VRF system?
-
A.
For VR-VI only the following can be used:
-
Q?
ASYA09LGC – how connecting into my Wi-Fi network?
-
A.
There are 3 posibillity:
1. UTY-XCBXE + UTY-TFNXZ1
2. UTY-XCBXE + FG-RC-WIFI1Z2
IntesisHome - software you need and go to http://user.intesishome.com/ and click on Create account.
3. FG-IR-WIFI1Z1
IntesisHome - software you need and go to http://user.intesishome.com/ and click on Create account. -
Q?
ARY30LUAN, is it possible to control via WiFi?
-
A.
Yes, it is possible.
HVAC Compatibility Tool - Find your compatible Intesis ProductsRequired AC Cloud Control gateway for Fujitsu RAC and VRF systems INWFIFGL001R100
-
Q?
is the room temperature sensor included in the indoor unit ARXG09KLLAP or in the remote control?
-
A.
The indoor units are factory set to read return temp from the return air thermistor built into the unit.
So if the indoor units will all detect the temperature of the room via the return air. -
Q?
what do I need to work with a ARYG54 duct type with switchbox
-
A.
Indoor units has built-in external input, but you can only ON or OFF the unit.
If you want to send the signal with a few parameters (MODE, SET TEMPERATURE, FAN SETTING) you need to use External Switch Controller (UTY-TERX).
This option include two independent inputs which you can configure freely.
So you can set up that:
• INPUT 1 → open → SCENE 1
• INPUT 1 → close → SCENE 2
• INPUT 2 → open → SCENE 3
• INPUT 2 → close → SCENE 4
This option is connected to REMOTE CONTROLLER port at indoor unit.
